HP/kW @ Prop
|
3.5 / 2.6
|
Max RPM (WOT)
|
5000 – 6000
|
Induction System
|
2-valve Push Rod (OHV)
|
Fuel System
|
Carbureted
|
Alternator Amp/Watt
|
NA
|
Starting
|
Manual
|
Gear Shift
|
F-N
|
Steering
|
Tiller w/360 degree turning
|
Recommended Oil
|
Mercury 4-Stroke Outboard Oil
|
Cooling System
|
Water-Cooled w/ thermostat
|
Cylinders
|
1
|
Displacement (CID/cc)
|
5.2 / 85
|
Bore X Stroke (in/mm)
|
2.16 x 1.42 / 55 x 36
|
Ignition System
|
CDI w/ electronic spark advance
|
Gear Ratio
|
2.15:1
|
Propeller
|
7.375” x 6”
|
Trim Positions
|
4
|
Shallow Water Drive
|
NA
|
Exhaust System
|
Above Prop
|
Fuel/Ethanol Tolerance
|
87 octane/up to 10% Ethanol
|
Integral Fuel Tank (gal/L)
|
0.3 / 0.95
|
Operator Warning System
|
Over-rev
|
SmartCraft Technology
|
No
|
Shaft Length (in/mm)
|
15/381 20/508
|
Dry Weight (lbs/kg)*
|
38/17 *Lightest model available
|

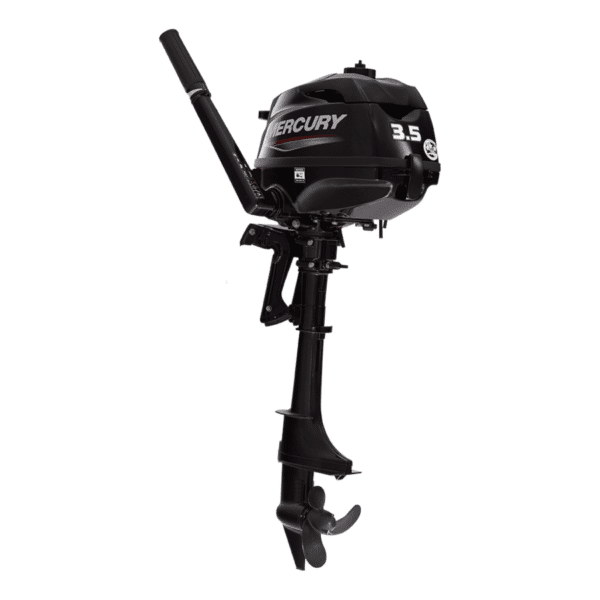

Mercury 3.5HP 4 Stroke Outboard
$1,750.00
Proven & Portable
Popular and in use around the world, the portable Mercury 2.5 & 3.5 hp FourStroke outboards deliver reliable, lightweight power for tenders and skiffs. Manufactured to the same high standards of corrosion resistance as larger Mercury models, these outboards are engineered for easy starting and quiet operation.
Compact & Lightweight
Mercury’s compact 2.5 and 3.5 horsepower four strokes weigh in at a mere 18 Kgs. These engines is easy for customers to carry and transport with their ergonomic carrying handle and lifting points
Large Displacement
Largest displacement in 2.5 hp class 18% more displacement than competitor. Overhead valve design for optimum power
Forward / Neutral Shifting with 180º Steering & 360º Turning Radius
Operator feels in complete control with easy shifting and easy steering with the added features of full thrust in reverse.
1 Liter Integral Fuel Tank
Integral Fuel Tank frees up space in the boat. Has an external fuel shutoff to run the carburetor dry for extended storage periods
Long Tiller Handle with Twist Throttle
Tiller handle is a durable design providing easy access for operator including a twist grip throttle control
Throttle & Steering Friction Control
Easy to use Co-pilot friction adjusters to fine tune throttle friction and steering resistance.
Multi-point Mounting System
A 4 point mounting system designed to absorb vibration at all rpm ranges.
Easy Rope Starting
Capacitor Discharge CD Ignition for hotter spark and a built-in decompression device allows for easy pull starts for all members of the family
Freshwater Flushing Port
Flushes saltwater and debris out of the engine extending the life of the outboard.
Simple Maintenance
Oil Site Gauge shows oil level & oil quality. The convenient Oil Drain plug make oil changes a breeze. The Fuel shutoff valve & vent on fuel cap prevents spillage when transporting or when you need to run the carburetor dry for extended storage periods
4 Manual Trim Positions
Four trim positions provide maximum performance. While the full tilt feature gets the engine out of the water. Tilt Lock System provides convenience when removing boat from water or portaging.
Composite 3 Blade Propeller
Efficient operation and a Stainless Steel Shear Pin provides durability and easy maintenance.
Out of stock
